Roland TR-1000 v1.50 Adds Keyboard Mode and Melodic Sequencing
Roland's free TR-1000 v1.50 update adds a Keyboard play mode, NOTE sequencing, 50 FM instruments from the TR-8S, four new effects and uninterrupted kit changes.
E
Elena Marsh
October 29, 2026 · 9 min read
Black Friday 2026Roland Black Friday 2026: dates and deals →
Roland has released System Program version 1.50 for the TR-1000, and it's the biggest free update the flagship rhythm machine has had yet. The headline is melodic sequencing. A new Keyboard play mode and a per-step NOTE parameter turn the drum machine into something you can write basslines and melodies on. It also folds in 50 FM instruments from the TR-8S, four new effects, and a setting that keeps your effects running while you change kits.
At a glance: TR-1000 System Program v1.50 (October 2026) adds a Keyboard play mode, NOTE step data for melodic parts, 50 FM instruments from the TR-8S library, new Roll, Roll 2, Rev Pan Delay and SBF-325 effects, a "Keep Kit EFX and EXT IN" setting for seamless kit changes, new output routings, and several workflow improvements. It's a free download for every TR-1000 owner. The hardware sells for around £2,299.

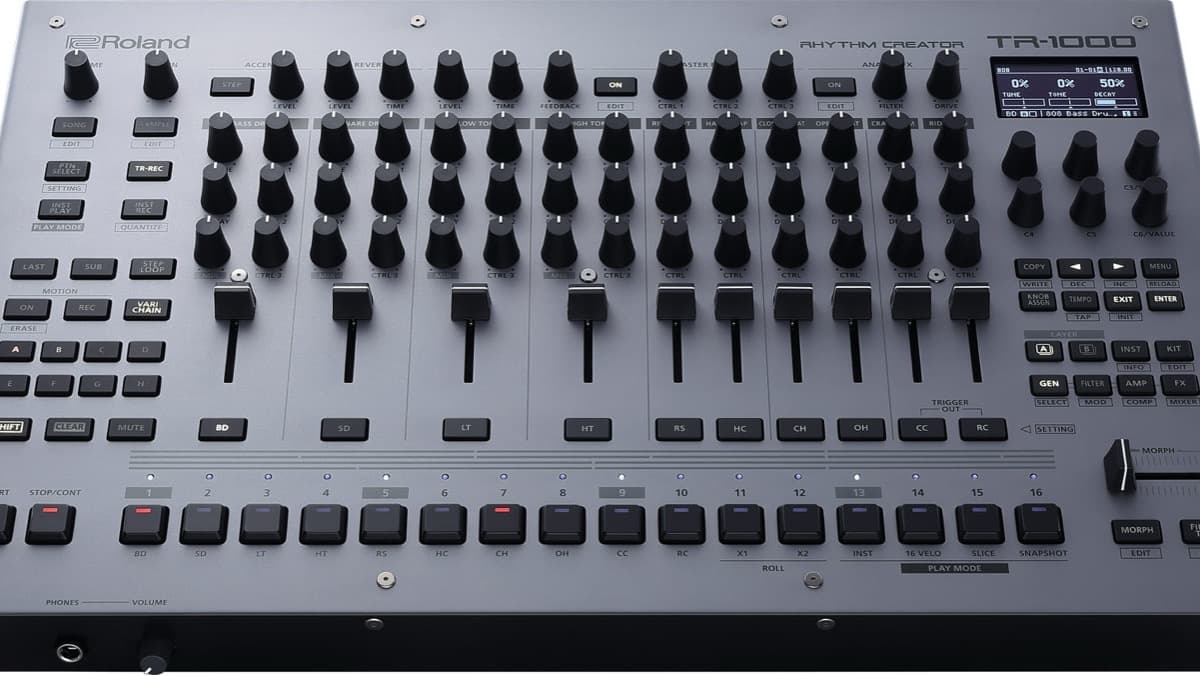

What is the Roland TR-1000?
The TR-1000 is Roland's current flagship drum machine, and it's the first Roland drum machine in over 40 years with a true analog engine. It carries 16 analog tones built on TR-808 and TR-909 circuits, then layers Roland's other sound engines on top. You also get 75 ACB tones, including 21 circuit-bent 8X and 9X models, FM and PCM engines, and a full onboard sampler with 64 GB of storage. It sits at the top of the TR line, well above the TR-8S, and competes with the most capable grooveboxes you can buy.
That breadth matters for this update. The TR-1000 was already a serious instrument for drums and percussion. Version 1.50 pushes it toward a more complete sketchpad, where the same hardware carries tuned parts and melodies instead of only beats.
What's new in TR-1000 v1.50
Keyboard mode and melodic NOTE sequencing. The marquee additions are a new KEYBOARD play mode for compatible sound generators and a NOTE step parameter that sets pitch in semitones. Together they let you play and sequence tuned parts straight from the step buttons, so basslines, stabs and melodic hooks live on the machine rather than in a separate synth. For a box that already holds FM and PCM voices, that changes what it can do in a set.
50 FM instruments from the TR-8S. The update pulls in 50 new FM instruments from the TR-8S instrument library, plus a new COARSE parameter across all FM generators for wider tuning. The FM engine was the obvious home for the melodic features, and the extra instruments give those NOTE sequences more to play with.
Four new effects. v1.50 adds Roll, Roll 2, Rev Pan Delay and an SBF-325 to the Master FX types, and the SBF-325 doubles as an insert effect. The Roll effects handle stutters and fills, the Rev Pan Delay gives you wide, reversed echoes, and the SBF-325 recreates a classic step filter voiced for rhythmic movement.
Seamless kit changes. A new "KEEP KIT EFX and EXT IN" setting carries the current kit's external input, reverb, delay, modulation, Master FX and Analog FX settings across a kit change. Switch it on and the reverb, delay and external sound keep running as you change kits, so a live set moves on without the usual drop in effect tails. On stage, that counts for a lot.
New output routings. A "MIX ONLY" option for the individual-output parameter mutes a track from its own physical output while keeping it live as digital audio over USB, useful for hybrid setups. The Analog FX routing now adds MIX plus ANA and ANALOG settings, with ANALOG sending the Analog FX sound to the analog output only.
Workflow and display upgrades. There's also a Pattern Select Mode with a manual option that waits for an ENTER press before changing patterns, a Sample Auto Adjust that matches imported sample levels to the destination category, and an Auto Track Select that follows the step keys you press during instrument play. The Song mode and Tempo screens get clearer encoder indications, a larger BPM display and tempo-nudge feedback, plus graphical tune and decay offsets and a visual filter EQ.
Roland TR-1000 specifications
| Spec | Detail |
|---|---|
| Developer | Roland |
| Type | Analog and digital drum machine (Rhythm Creator) |
| Analog engine | 16 analog tones based on TR-808 and TR-909 circuits, plus Analog FX (filter and drive) |
| Modeling | 75 ACB tones, including 21 circuit-bent 8X and 9X models |
| Other engines | FM (with 50 added TR-8S instruments in v1.50), PCM with 340 tones, virtual analog |
| Sampler | 2,121 sample tones, onboard sampling at 16-bit/48 kHz, imports WAV, AIFF and MP3, up to 16-minute samples |
| Storage | 64 GB onboard, around 46 GB free for user samples |
| Tracks | 4 layer tracks, 6 single tracks, 1 exclusive trigger-out part |
| Sequencer | 16 steps per variation, 8 variations per pattern, 4 fill-ins per pattern, 2,048 user patterns, 2,048 user kits |
| Effects | Instrument FX (17), Master FX (14), Reverb (6), Delay (4), plus filter, amp and compressor types |
| Current system | Version 1.50 (October 2026), free download |
| Price | Around £2,299 |
Roland TR-1000 vs Elektron Analog Rytm MKII
The TR-1000's natural rival is the Elektron Analog Rytm MKII, the other premium drum machine that pairs analog synthesis with sampling. They take different routes to a similar goal.
| Roland TR-1000 | Elektron Analog Rytm MKII | |
|---|---|---|
| Price | Around £2,299 | Around £1,333 |
| Analog engine | 16 analog TR-808 and TR-909 tones plus Analog FX | 8 voices of analog drum synthesis |
| Other sounds | ACB, FM, PCM and 2,121 sample tones | Sample playback on every voice |
| Sampler storage | 64 GB onboard, around 46 GB free | Sample RAM for loaded sounds, far smaller |
| Sequencer | 16 steps, 8 variations, now with melodic NOTE steps | Up to 64 steps with parameter locks and song mode |
| DAW integration | USB audio and a dedicated TR-1000 app | Overbridge plugin integration |
| Best for | Roland's analog sound with deep sampling | Hands-on sound design and parameter locks |
The Analog Rytm MKII is cheaper and still the reference for immediate, lock-driven sound design. The TR-1000 answers with authentic TR analog voices, far deeper sampling and, after v1.50, melodic sequencing on the same box. If you want a drum machine rooted in the 808 and 909, the Roland is the one. For more options across the category, see our guide to the best drum machines of 2026.
Who the TR-1000 v1.50 update is for
Every TR-1000 owner should install it, because it's free and adds real capability. The melodic features reward anyone who performs with the machine or builds whole patterns on it without a separate synth. The Keep Kit EFX setting is close to essential for live players who switch kits mid-set. Studio users gain the new effects, the FM instruments and the tidier output routing.
If you're weighing the TR-1000 against rivals for the first time, this update strengthens the case. The price is high, but you're buying an analog drum machine that now sequences melodies too. Producers who only need a compact beat box will still find the TR-8S or a smaller groovebox better value, and anyone after a keyboard-first instrument should look at our best hardware synthesizers instead.
How much does the Roland TR-1000 cost?
The v1.50 update is a free download for all TR-1000 owners, installed from the dedicated TR-1000 app or Roland's support site. The Roland TR-1000 itself sells for around £2,299, which puts it at the top of the TR range and among the most expensive drum machines on the market.
Check price on ThomannYou can download the system program and read the full change list on the official TR-1000 updates page.
FAQ
What does the TR-1000 v1.50 update add?
It adds a Keyboard play mode and NOTE step data for melodic sequencing, 50 FM instruments from the TR-8S, new Roll, Roll 2, Rev Pan Delay and SBF-325 effects, a Keep Kit EFX and EXT IN setting for seamless kit changes, new output routings, and workflow and display improvements.
Is the TR-1000 v1.50 update free?
Yes. Version 1.50 is a free system program download for every TR-1000 owner, available through the TR-1000 app or the official Roland support site.
Can the TR-1000 play melodies now?
Yes. The new KEYBOARD play mode and the per-step NOTE parameter let you play and sequence tuned parts in semitones, so you can program basslines and melodies on compatible sound generators.
How is the TR-1000 different from the TR-8S?
The TR-1000 has a true analog engine with 16 TR-808 and TR-909 tones, far more storage and a full sampler, where the TR-8S relies on ACB modeling and sample playback. Version 1.50 also brings 50 of the TR-8S FM instruments to the TR-1000.
How much is the Roland TR-1000?
The TR-1000 sells for around £2,299. The v1.50 update is free on top of that.
Verdict
Version 1.50 broadens what the TR-1000 is for. The analog voices and the sampler always made it a strong drum machine, and melodic Keyboard mode now lets the same hardware carry basslines and hooks, so you can build far more on it without reaching for another synth. The 50 TR-8S FM instruments, the new effects and the seamless kit changes round out a large free update. At around £2,299 it's a serious outlay, but Roland keeps adding to what you get for the money, and v1.50 is the strongest case yet. For the wider field, see our roundup of the best drum machines of 2026.
