Written by Dubspot Instructor and DJ product specialist for Native Instruments Mike Henderson aka DJ Endo

Have you ever heard two songs that when mixed together, sounded like they were “meant to be” and went perfectly together from beginning to end, and almost appeared to be singing together? Most likely, the reason these two songs probably sounded so good together is because they are “in key” with one another. A key is the major or minor scale around which a piece of music revolves. For example, a song in the key of C Minor has its harmonic center or “do” at C, and revolves around a minor scale.

More and more DJ’s today are mixing “in key” or mixing “harmonically.” Some DJ’s who use Harmonic Mixing religiously include Armin Van Buuren, BT, David Guetta, DJ Shadow, DJ Skribble, Dubfire, Enferno, Marcus Shulz, Nic Fanciulli, Nick Warren, Paul Okenfold, Pete Tong, Reid Speed, Roger Sanchez, Saeed Younan, Spor, Tiesto, and Z-Trip.

In order to mix harmonically, DJs must know the musical keys of all of the records they play. Once they know the key of all their tracks, they can then sort their music collection by key, and play tracks that are in the same or complimenting keys, so that the songs they play will appear to “sing” together, and DJs will have full control over the energy of the room by picking keys that boost, and lower the energy of the crowd. Not only will Harmonic mixing help you choose records that are musically compatible quicker, and make your DJ sets flow better, but it will also sonically improve your sound since you are playing tracks that compliment each others frequencies. When you mix harmonically, your vocals, melodies, and basslines will be in key, and will blend musically, making your tracks appear to “sing” with one another.

Harmonic Mixing works for every genre of music from Hip Hop, House, Dubstep to Ambient and Techno. Even wedding DJ’s and Radio DJ’s who don’t mix will benefit from Harmonic Mixing.  Artists and bands who are putting out albums can order their albums by key to sell more records since it keeps their listeners interested and wanting more with each song. Producers can benefit from harmonic mixing because they can figure out the key of all their musical loops and samples and find samples that are in the key of the track they are making.

One thing you might be saying to yourself at this point is “This is all great, but I don’t know anything about music theory.” Well, fear not. Today there is technology that will actually go through your entire music collection and write the musical keys into the metadata of your songs, so you can then view the keys in Traktor, iTunes, Ableton, Serato or whatever your DJ Program of choice is.

The most popular Harmonic Mixing software is called Mixed In Key – an application in which you simply drop all your music folders into the Mixed in Key Window, click the “Analyze” button, and when its done scanning you will see the keys appear in the Artist, Comments, Title, or Key field depending on which field you choose in the Mixed in Key preferences. Not only can you scan your music files in Mixed In Key, but it also works great for keying acapellas so your mashups are in key.

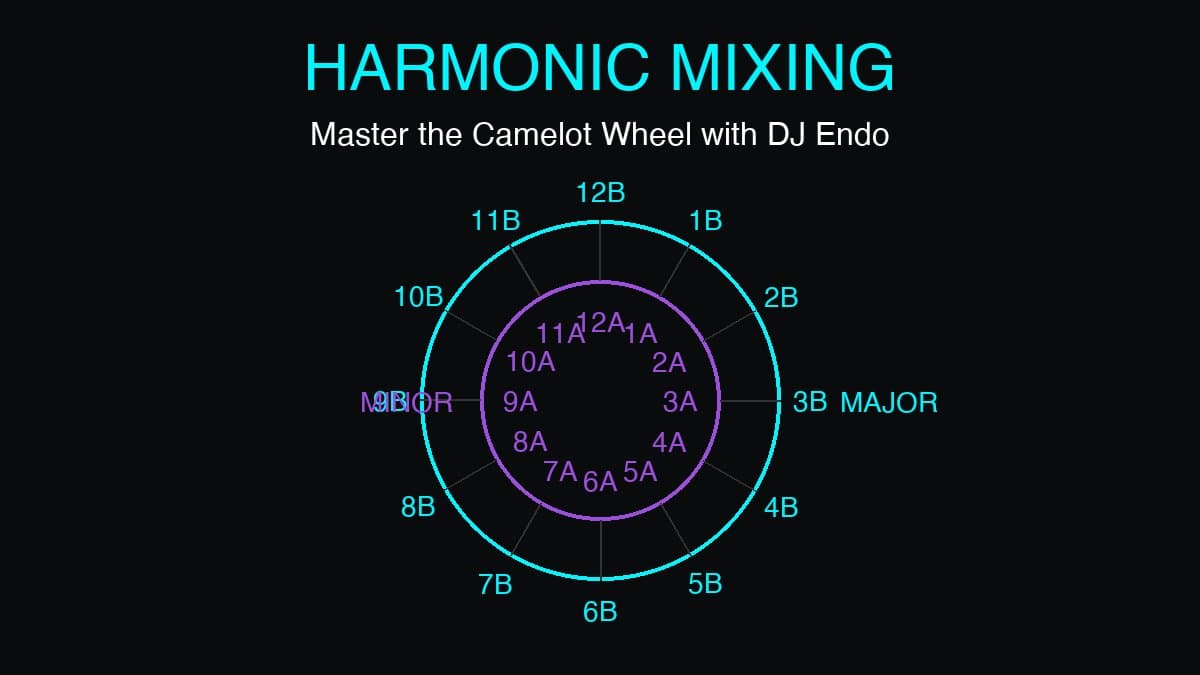

Once you’re done scanning all of your music, there is a simple chart you can follow called the Camelot wheel that will tell you which keys are compatible. The Camelot wheel can be found on Harmonic-Mixing or Mixed In Key. On this wheel, musical keys can be seen as “hours” on a clock. For example 4 o’clock corresponds to 4B or 4A. The “B” letter represents Major Keys, and the “A” letter represents the Minor Keys. To follow the chart, you can mix between songs by subtracting one “hour” (-1), adding one “hour” (+1) or staying in the same “hour”. So if you are in the key of “4A” , the next song can be 3A, 4A, or 5A. Its just like subtracting or adding one “hour.”

Music Theory wise, the Camelot wheel represents the Circle of Fifths. The Circle of Fifths shows the relationships among the twelve tones of the chromatic scale, their corresponding key signatures and their associated relative minor and major keys. It is really helpful when you are composing melodies and harmonies and moving in keys within a composition. For DJs it is just a handy chart that will tell you what tracks will go well together. Here are some examples of key combinations I like to use that you can try when you’re Harmonic Mixing and what effect it will have musically and on the energy of the crowd.

Staying in the same key (4A – 4A) (F Minor – F Minor) – These tracks will both be in the same key and are therefore perfectly compatible harmonically. Playing two tracks in the same key will give the effect that the tracks are singing together.

Moving up a Fifth (+1 on the Camelot Wheel) (4A-5A) (F Minor – C Minor) – This will raise the energy in the room. Harmonically these two keys are almost perfectly compatible. Only one note is different between the two scales.

Going down a Fifth (-1 on the Camelot Wheel) (4A – 3A) (F Minor – B flat Minor) – I like to say this type of mix will take the crowd deeper. The tracks will sound great together. It won’t raise the energy necessarily but will give your listeners goosebumps!

Going from Relative Minor to Relative Major (Change Letter on the Camelot Wheel) (4A-4B) (F Minor – A flat Major) – This combination will likely sound good because the notes of both scales are the same, but the root note is different. The energy of the room will change dramatically.

Going from Minor to Major (+3 and change letters on the Camelot wheel) (4A-7B) (F Minor – F Major) – While these keys might have 3 notes that are different, the root note is the same and can give a great musical effect on the dancefloor, either brightening the mood or darkening the mood.

Going up a Minor Third (-3 on the Camelot Wheel) (4A – 1A) (F Minor – A flat Minor) – While these scales have 3 notes that are different I’ve found that they still sound good played together, and tend to raise the energy of a room.

Going up a Half Step (Modulation Mixing) – (+7 on the Camelot Wheel)(4A-11A)(F Minor – F Sharp Minor) – While these two scales have almost no notes in common, musically they shouldn’t sound good together but I’ve found if you plan it right and mix a percussive outro of one song with a percussive intro of another song, and slowly bring in the melody this can have an amazing effect musically and raise the energy of the room dramatically.

Going up a whole step (Modulation mixing) (+2 on the Camelot wheel) (4A – 6A) (F Minor – G Minor) – This will raise the energy of the room. I like to call it “hands in the air” mixing, and others might call it “Energy Boost mixing”.

Playing the Dominant Key of the Relative Major / Minor Key (+1 on the Camelot Wheel and change the letter)(4A-5B or 5B-4A)(F Minor to Eb Major) – I’ve found this is the best way to go from Major to Minor keys and from Minor to Major because the scales only have one note difference and the combination sounds great

Playing the Sub Dominant key of the Relative Major / Minor Key (-1 on the Camelot Wheel and change the letter)(4B-3A)(A flat Major to B flat Minor) – This is similar to playing the Dominant key of the Relative Major or Minor key, and is another great way to transition between major and minor scales, since the scales are only different by 1 note, and also sounds really good harmonically.

It is important to note that the Camelot system is a simplified view of harmonic mixing, and assumes that the tracks being played are either at the same BPM, or that the DJ is using “Key Lock” or “Master Tempo” on the CDJ’s or DJ program they are using. Key Lock and Master Tempo keeps the original key of the track, no matter what the tempo its being played at. If key lock is not on, then every 6% (technically 5.94631%) change in speed will shift the key up a half step (example a track in C Minor played at 6% is now in C sharp minor).

In the past I would’ve advised against using key lock because you may lose a lot of bass and high frequencies in your tracks, and also get unwanted sound artifacts if your tracks are pitched up or down from their original speed. However recently Traktor Pro and Ableton Live 8 licensed the new Elastique Pro key lock algorithm that sounds amazing. With the new key lock algorithm, it is almost impossible to tell the difference in sound quality with key lock on or off. Since this was released I rarely turn key lock off when I am DJing in Traktor Pro.

There has been a lot of controversy in the DJ scene about Harmonic Mixing. Most people who are against it usually haven’t tried it themselves, and once they do are blown away by the results. Some common complaints from the Harmonic Mixing ‘haters’ are “I do it all by ear” or “I just go with the flow and play what sounds good”.

Well the truth is good DJ’s usually CAN do it by ear, but most of their good track combinations came from a lot of trial and error, and practicing. Technically speaking, there are 24 possible keys in western music (12 minor and 12 major), and out of the 24 keys, only 6 keys are harmonically compatible with any given key (4 are in perfect harmony and 2 are in reasonable harmony). So only 25% of all possible choices are harmonically compatible. This means that if you don’t know the keys of your tracks your probably going to waste 75% of your time looking for the “right track”.

In the new digital age, we are bombarded with so much music that we don’t have the time to go through every release and figure out what goes well with it. Using mixed in key makes it possible to intelligently and quickly pick tracks that go well together and will make your music world much smaller, which in this day in age is a good thing.

Sure, just because tracks are in key with one another doesn’t mean they will work at that moment, or work at all together. However, you will at least know what WON’T go well together. I’m not saying by any means to be a slave to harmonic mixing but it will at least present you with some great options and combinations of what WILL work harmonically. Then its just a matter of picking that track that fits the vibe, keeps the pace, tells the story and rocks the house!

DJ Endo – Live on Algorhythms – set in D minor [Radio Set - No Voiceovers] by DJ Endo

DJ Endo – Algorhythms in G Minor [Radio Mix] by DJ Endo

DJ Endo – Algorhythms in F minor [Radio Mix] by DJ Endo

DJ Endo – Algorhythms in A Minor [Radio Mix] by DJ Endo

-

Free lessons on scales, roots notes, and more music theory topics discussed in the video, please check out musictheory.net

Follow along with parts 2 & 3 below.

Harmonic Mixing Pt. 2: Relative Key – Mixing Without Key Lock

Harmonic Mixing Pt 3: Lab Report – Is ‘Mixed In Key’ Accurate?
